Each MPX bay provides:

x16 gen 3 bandwidth for graphics

x8 gen 3 bandwidth for Thunderbolt

DisplayPort video routing

Up to 500W power for an MPX Module

Alternatively, each MPX bay can support:

One full-length, double-wide x16 gen 3 slot and one full-length, double-wide x8 gen 3 slot (MPX bay 1)

Or two full-length, double-wide x16 gen 3 slots (MPX bay 2)

Up to 300W auxiliary power via two 8-pin connectors

Three full-length PCI Express gen 3 slots

One x16 slot; two x8 slots

75W auxiliary power available

One half-length x4 PCI Express gen 3 slot with Apple I/O card installed

Apple Afterburner

ProRes and ProRes RAW accelerator card

PCI Express x16 card

Accelerates ProRes and ProRes RAW codecs in Final Cut Pro, QuickTime Player X and supported third-party apps

Supports system playback of up to 6 streams of 8K ProRes RAW or up to 23 streams of 4K ProRes RAW

Storage

4TB SSD

Up to 3.4GB/s sequential read and 3.4GB/s sequential write performance.

Storage encrypted by the Apple T2 Security Chip.

Input/Output

I/O card installed in the half-length x4 PCI Express slot with:

Two USB 3 ports

Support for USB-A (up to 5Gb/s)

Two Thunderbolt 3 ports

Support for Thunderbolt 3 (up to 40Gb/s)

Support for USB‑C (up to 10Gb/s)

Support for DisplayPort

Two 10Gb Ethernet ports:

Support for 10Gb Ethernet performance over copper cabling

Support for Nbase-T industry standard: 1Gb, 2.5Gb, 5Gb and 10Gb Ethernet link speeds using RJ‑45 connectors

Additional Connections

Two Thunderbolt 3 ports on the top of the tower enclosure

Support for Thunderbolt 3 (up to 40Gb/s)

Support for USB‑C (up to 10Gb/s)

Support for DisplayPort

Audio

Built-in speaker

3.5mm headphone jack with headset support

Input Devices

Magic Keyboard with Numeric Keypad (silver and black)

Magic Mouse (silver and black)

Wireless

Wi‑Fi

802.11ac Wi‑Fi wireless networking

IEEE 802.11a/b/g/n compatible

Bluetooth

Bluetooth 5.0 wireless technology

Enclosure

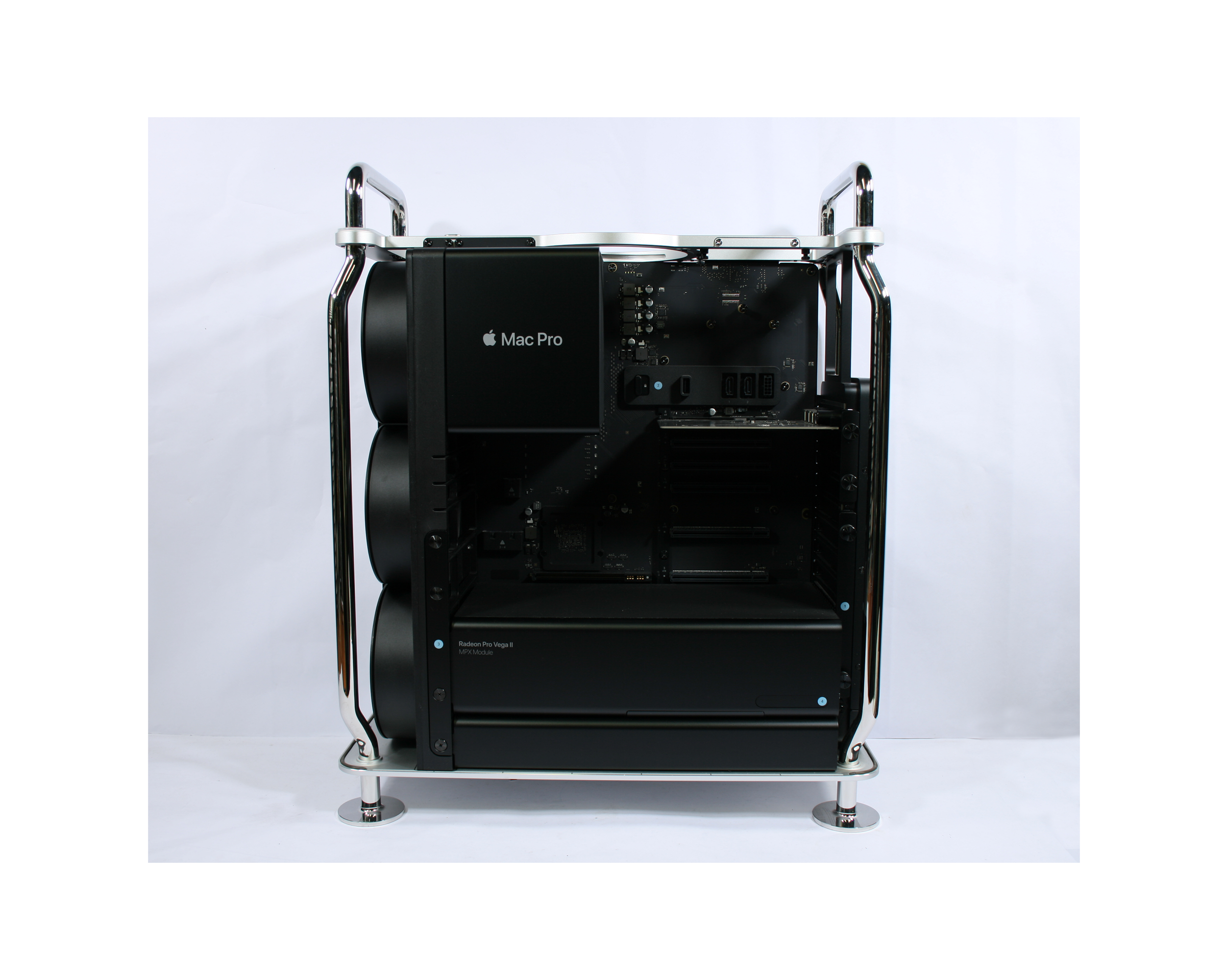

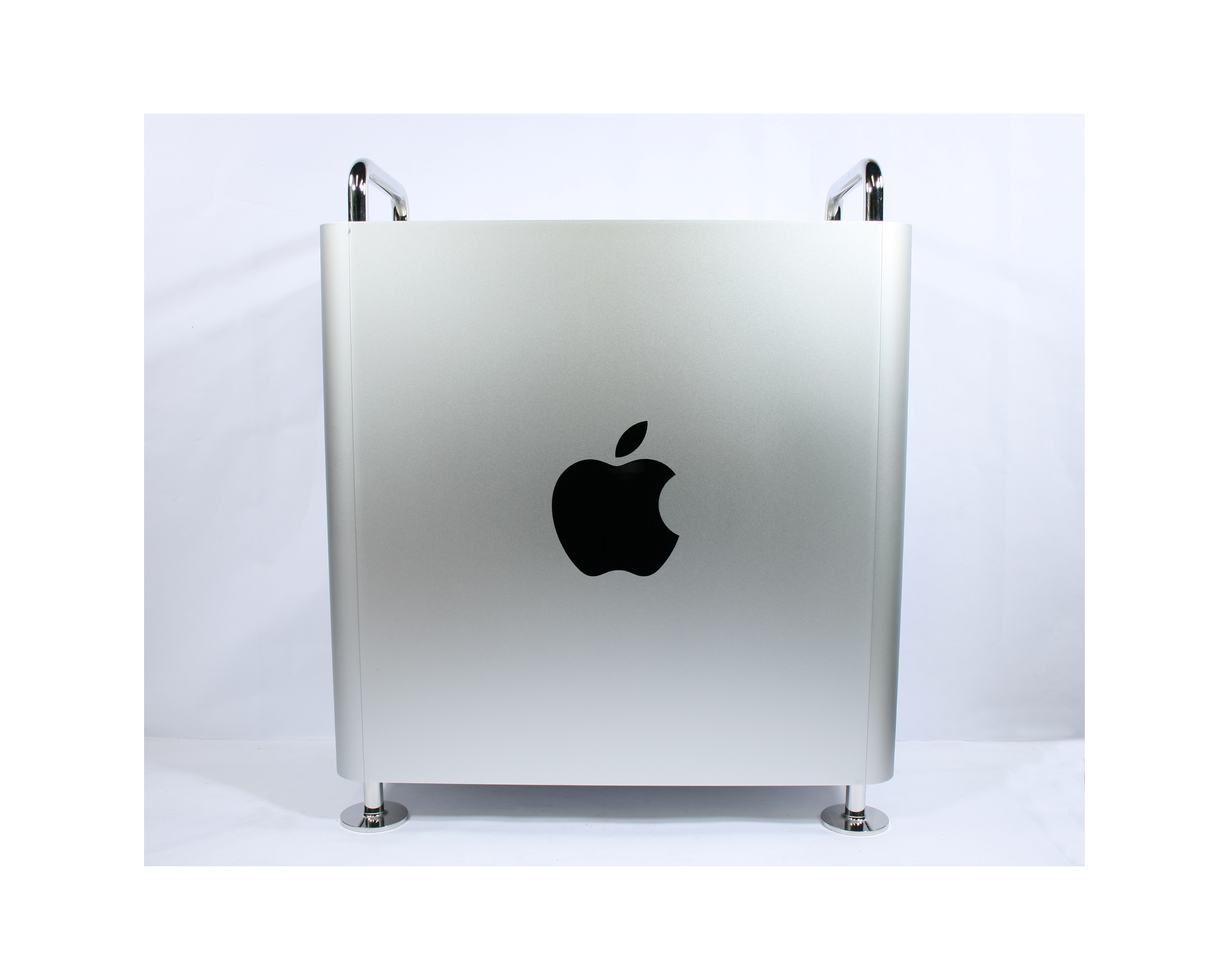

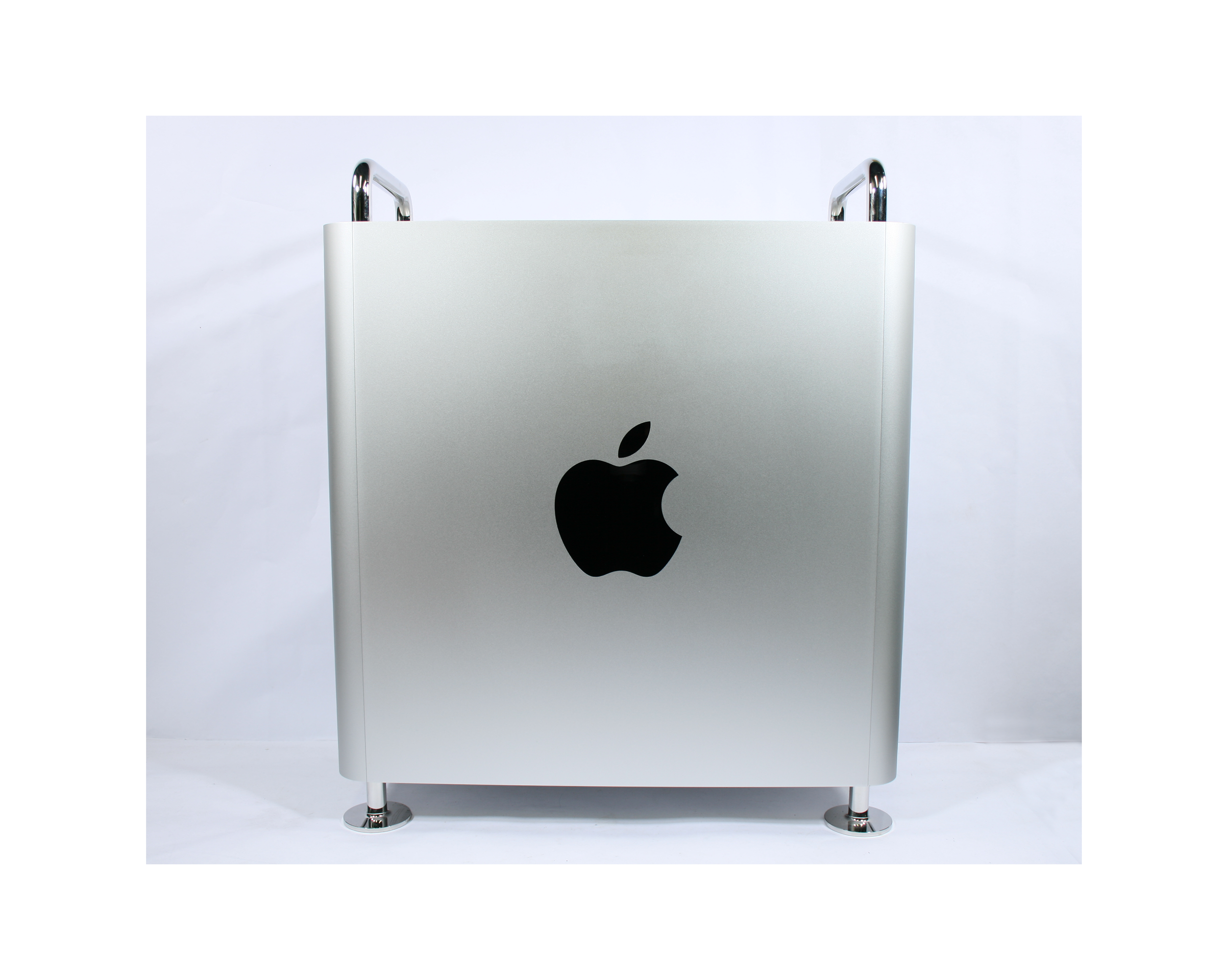

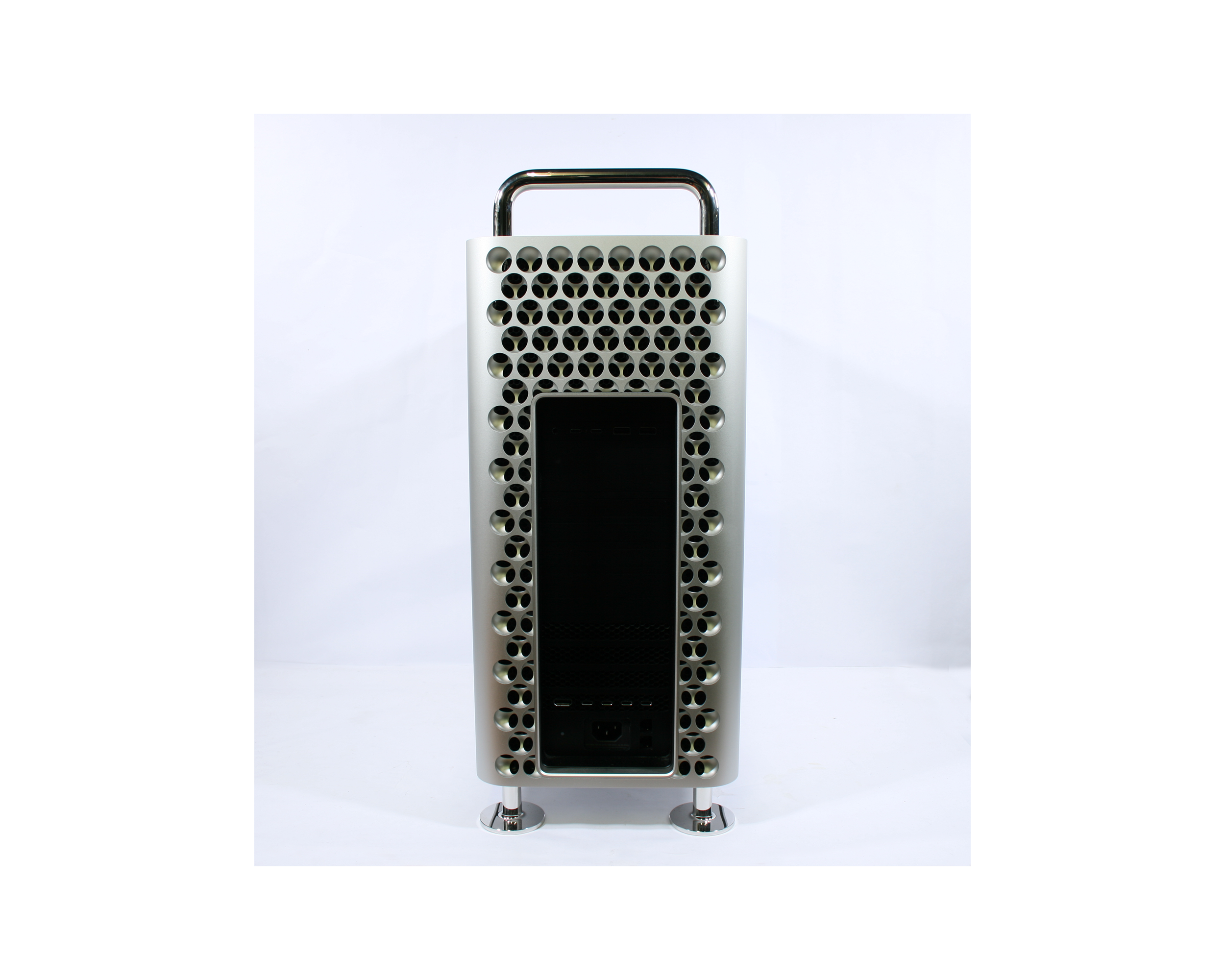

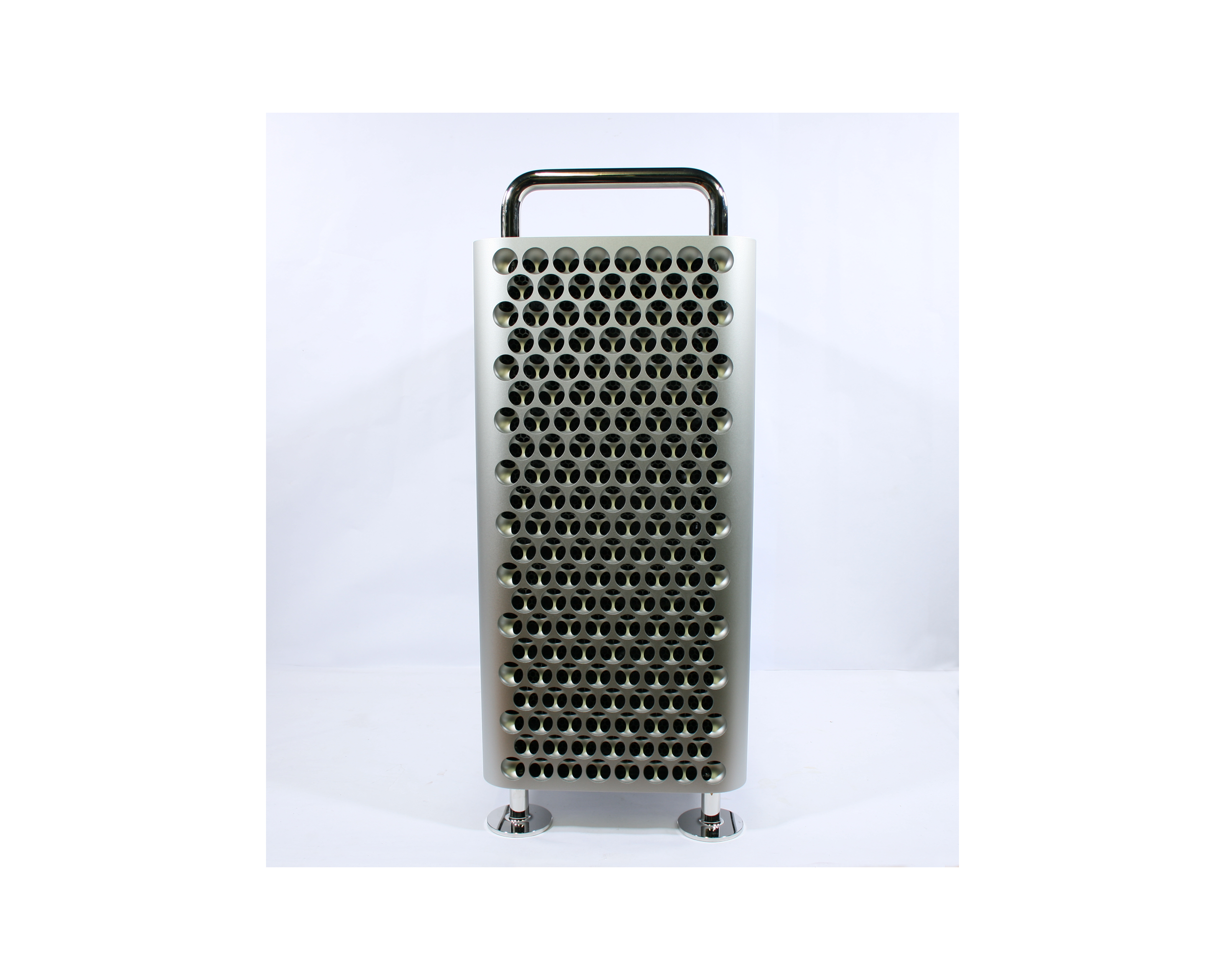

Mac Pro tower enclosure with feet

Dimensions

Height: 52.9 cm (20.8 inches)

Width: 45.0 cm (17.7 inches)

Depth: 21.8 cm (8.58 inches)

Weight

18.0 kg (39.7 pounds)

In The Box

Mac Pro

Magic Keyboard with Numeric Keypad

Magic Mouse

USB‑C to Lightning Cable (1m)

Power lead (2m)
